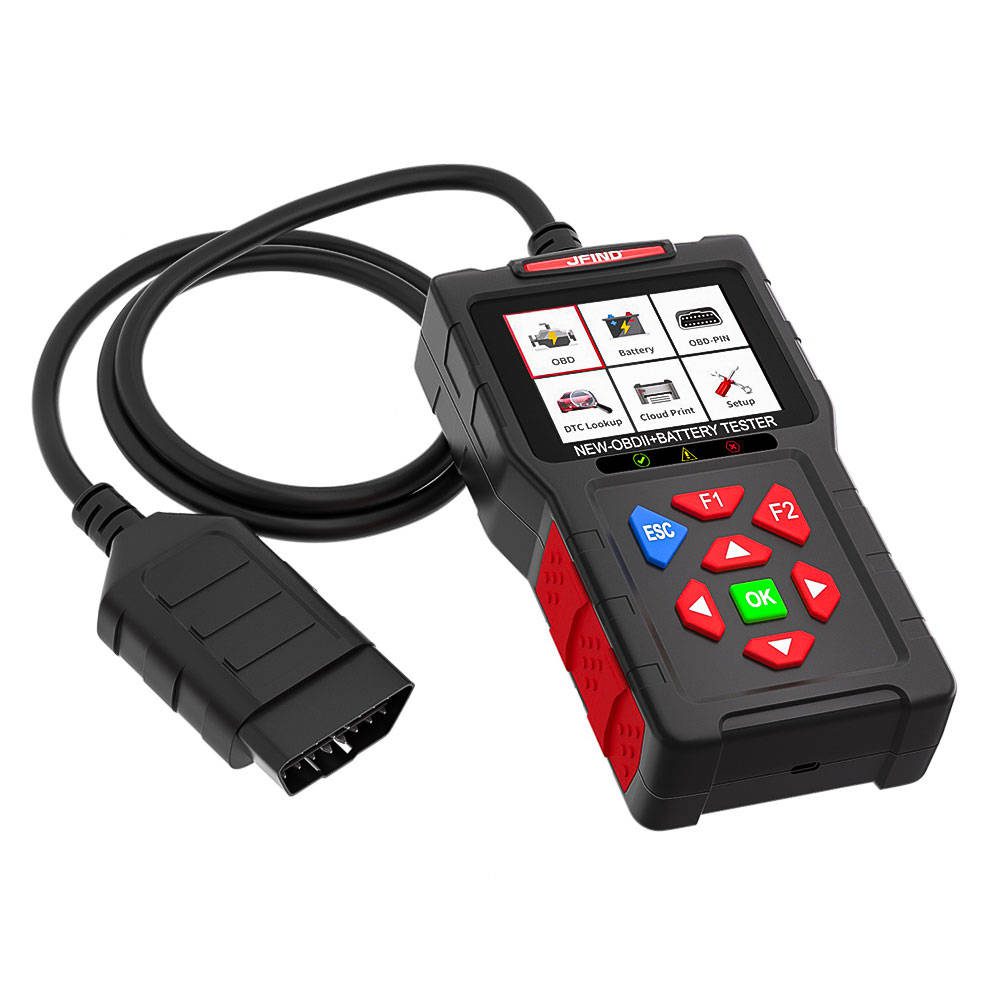

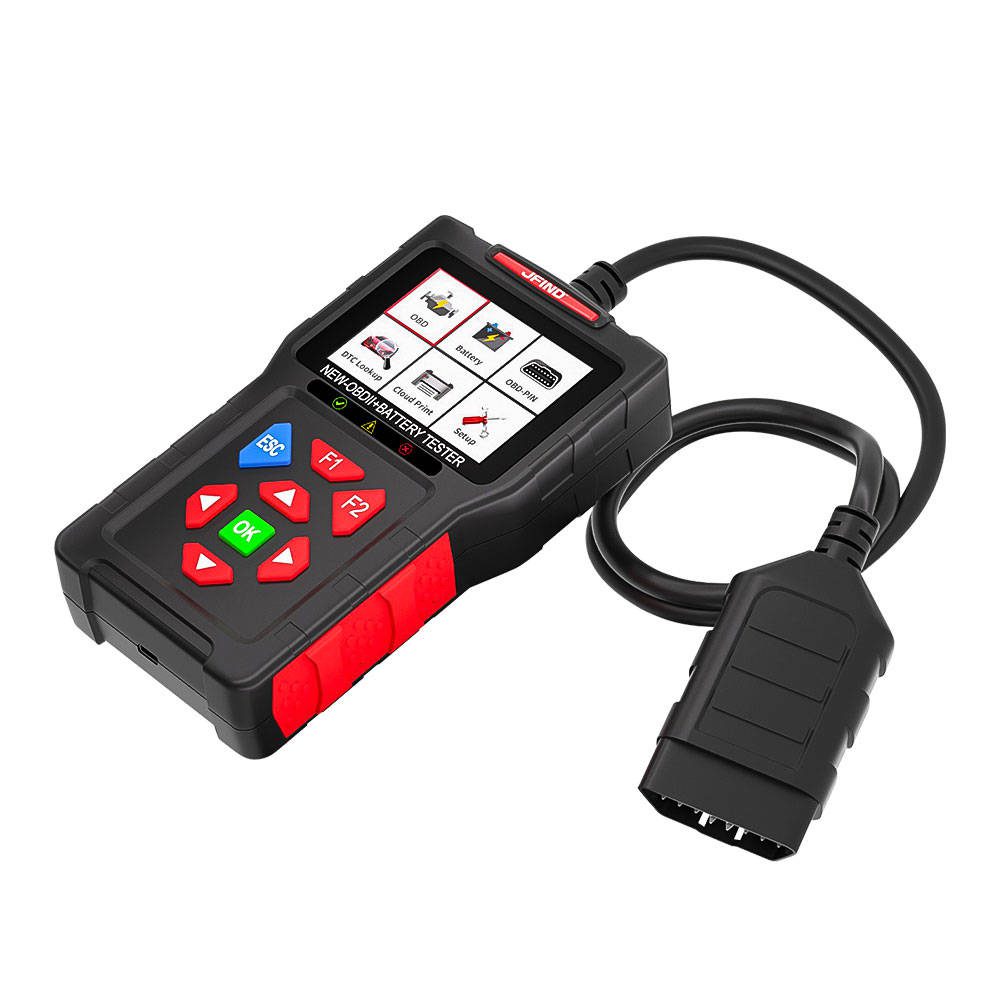

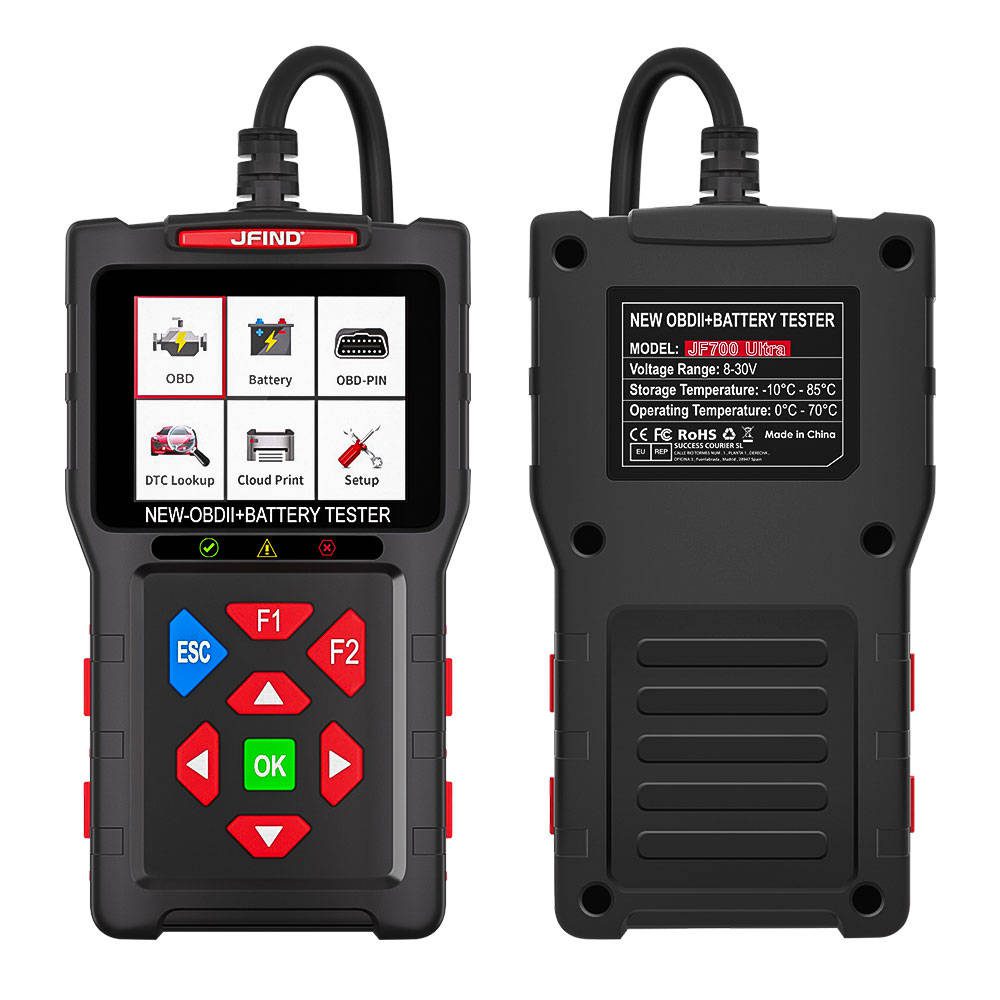

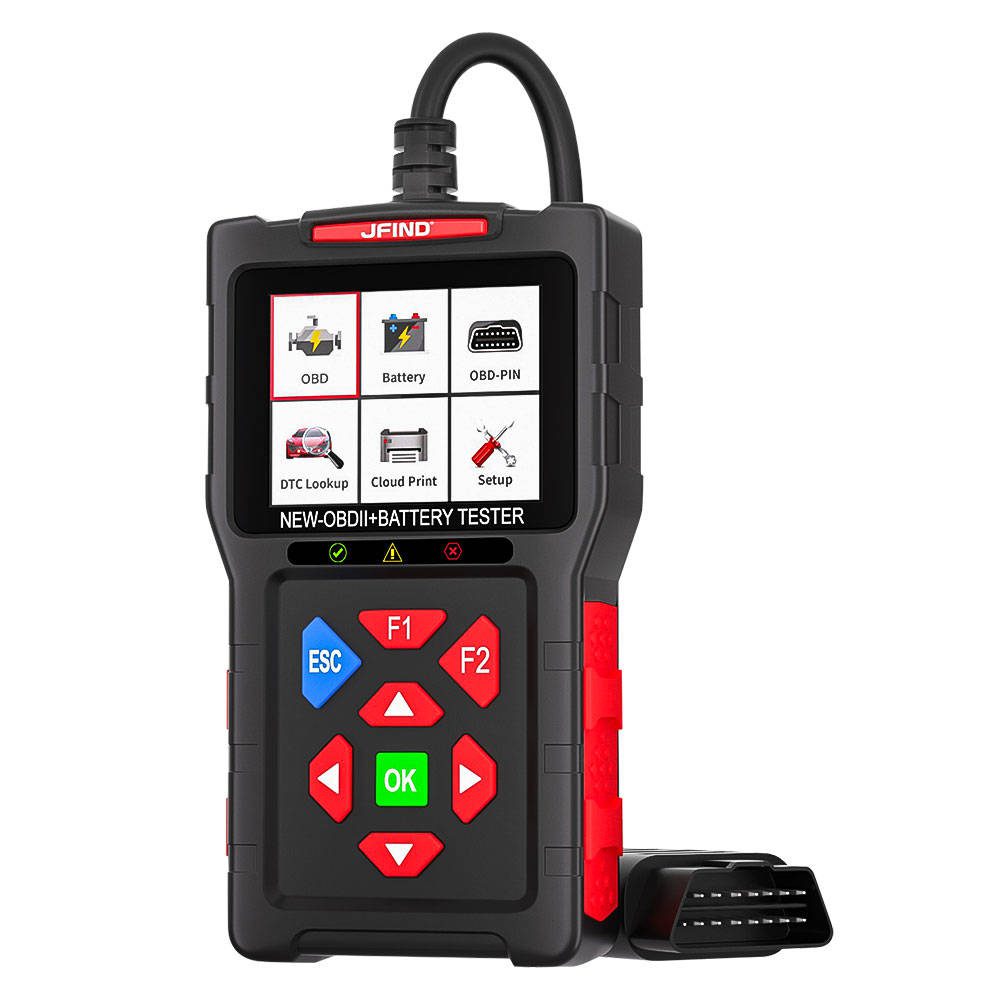

JFIND JF700 Ultra Universal OBD2 Scanner Car Engine Fault Code Reader Car Diagnostic Tool Support Battery Health Tester



Top Reasons To buy JFIND JF700 Scanner:

1. Support Fault code 5W+
2. OBD Voltage Detection
3. Mode 6 test
4. Mode 8 test
5. 2.8” large screen
6. Support Battery health test, Battery standard test, Battery charging test., Battery start test.
7. Support Free Update and Clound print;
8. JF700 Ultra 14 languages: English, German, French, Italian, Spanish, Polish, Dutch, Portuguese, Russian, Malay,, Vietnamese, Thai, Fillipino, Chinese.



Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4Kbaud)

4.ISO14230-4 KWP(5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



JFIND JF700 Functions:

OBDII Function

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic

code definitions in the database).

2: Clear trouble codes and turn off the MIL ( “Check Engine” light)

3: Display current sensordata, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others



OBDII Voltage Detection

OBD voltage check will help to find the fault faster. This is the big function advantage for this scanner compared with the other obd2 scanner.



Mode 6 Test

Mode 6 retrieves test results for emission-related powertrain components and systems that are not continuously monitored. This mode does not command the vehicle’s computer to perform the tests. It simply retrieves results from the most recently performed tests from the computer’s memory.

1: Oil Life

2: Oil Level

3: Battery Status

4: Transmission Fluid Temp

5: Tire Pressure

6:  Oxygen Sensors

7: Catalytic Converters

8: Exhaust Gas Recirculation System

9: Evaporative Emissions System

10: Purge Flow Monitor

11: Oxygen Sensor Heaters

12: Heated Catalytic Converters

13: Secondary Air System

14: Fuel System

15: Misfire Monitor



Mode 8 Test

The purpose of the Mode 8 is to allow a scan tool to do bidirectional control of an onboard system or test. Typically, it is

currently limited to some evaporative emissions systems and allows the user to seal the system for leak testing.

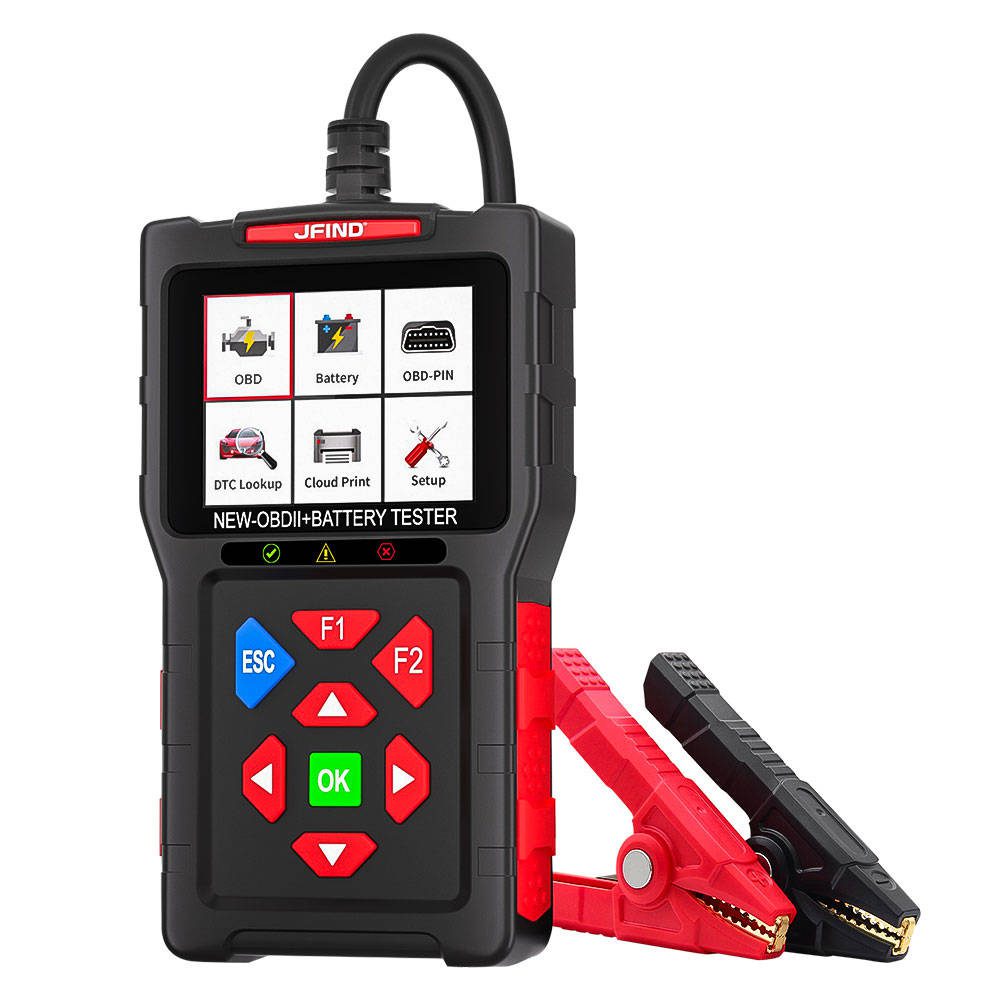

Battery Tester

Battery health test.

Battery standard test.

Battery charging test.

Battery start test.



Update Mode

You can consult with your agent to check the latest software version and ask your dealer for an upgrade tool to complete the upgrade.



Update Steps:

1.Connect to computer, enter device to update mode;

2.Make sure the usb drive is ok, click”update tool” to update one by one;

3.Click”cb_obd.bin”,click “refresh”, then “update”;

4.When it’s finished, enter the device to update mode again;

5.Click”OBD.bin”, click “refresh”, then”update”.

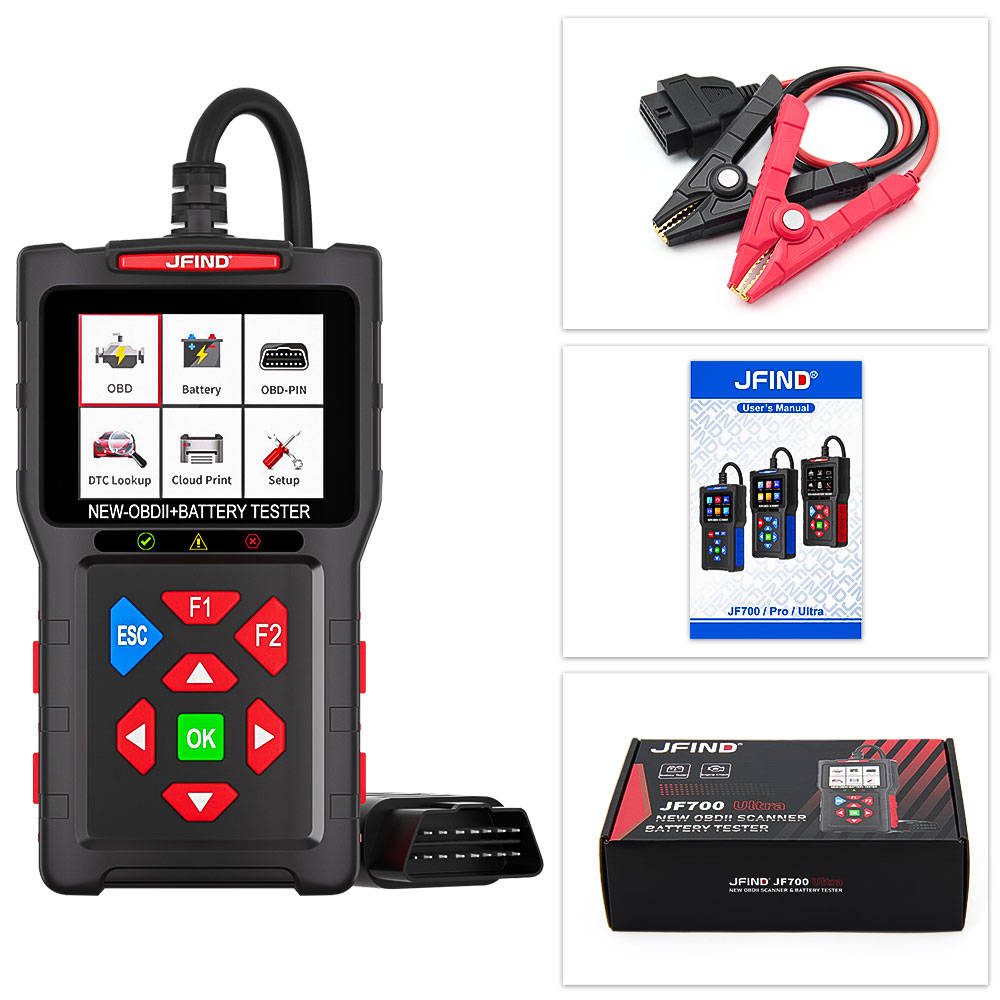

Package List:

1 x JFIND JF700 Ultra OBD2 Scanner

1 x Battery Clips

1 x User Manual

1 x Box package
