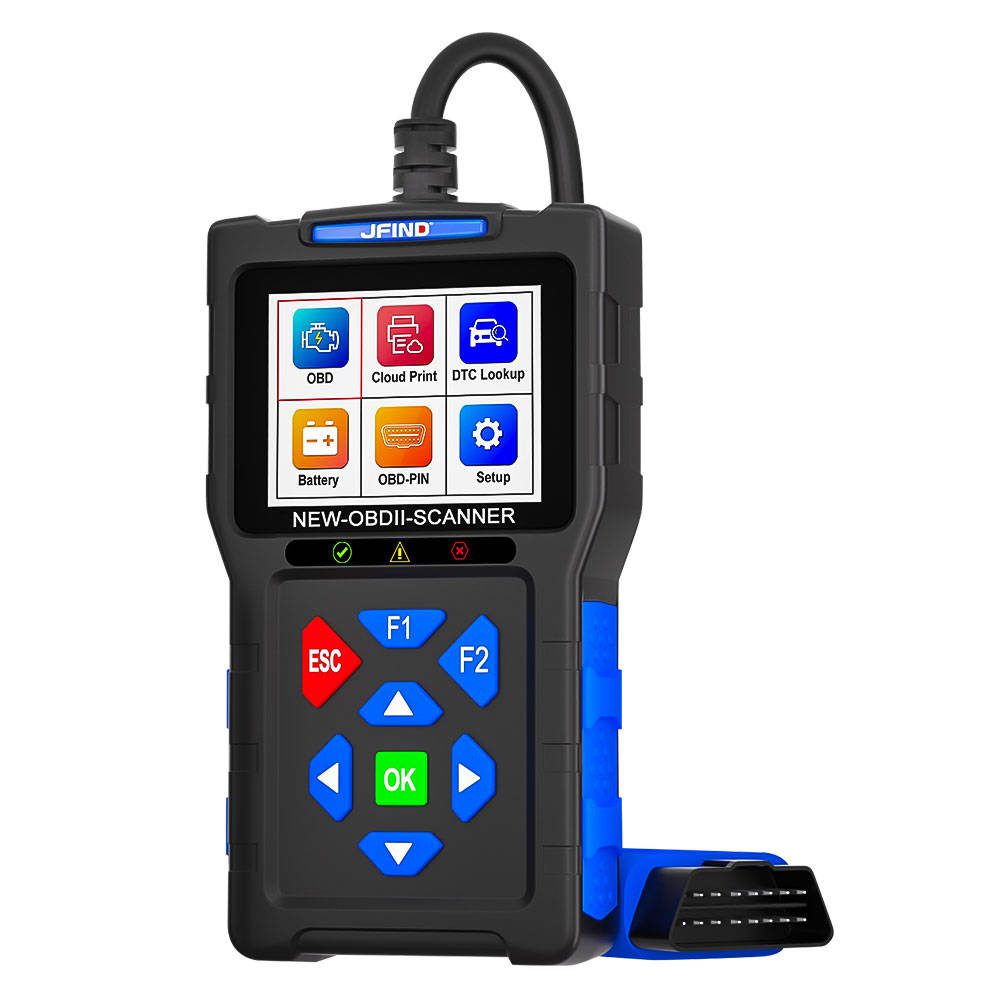

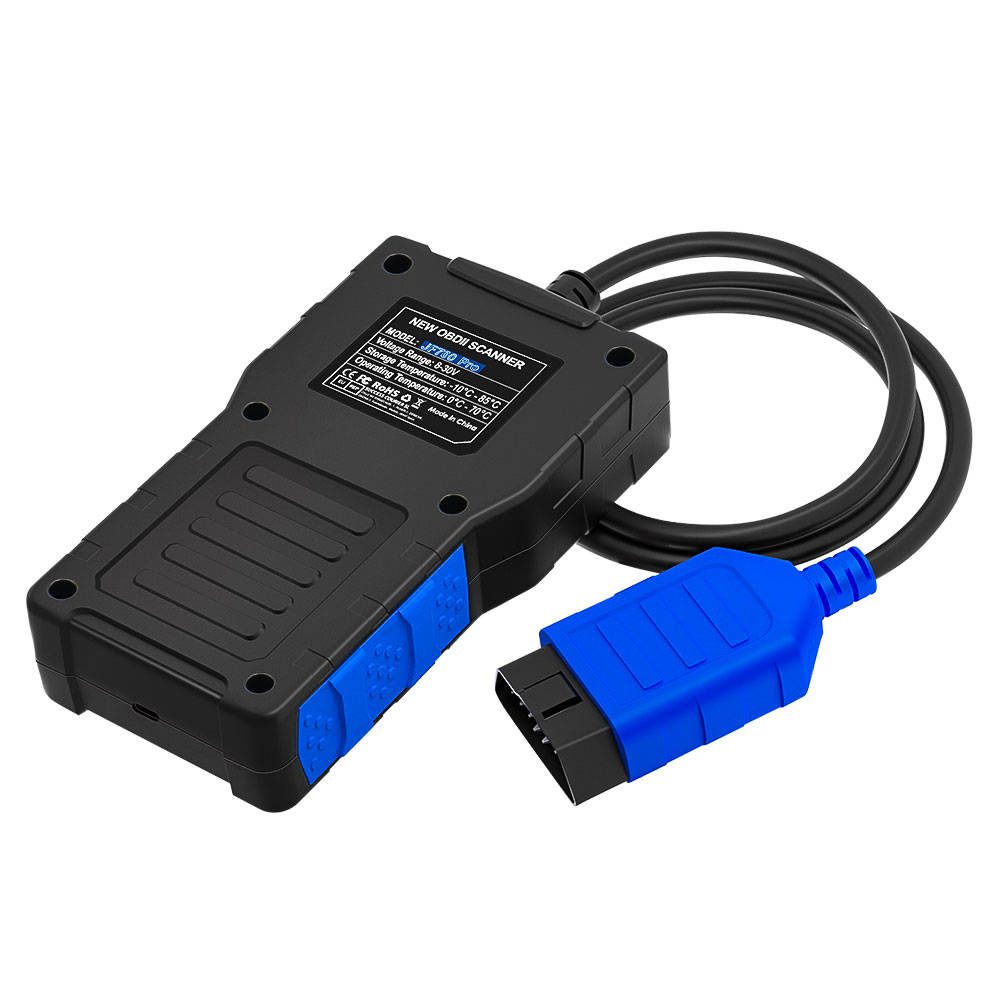

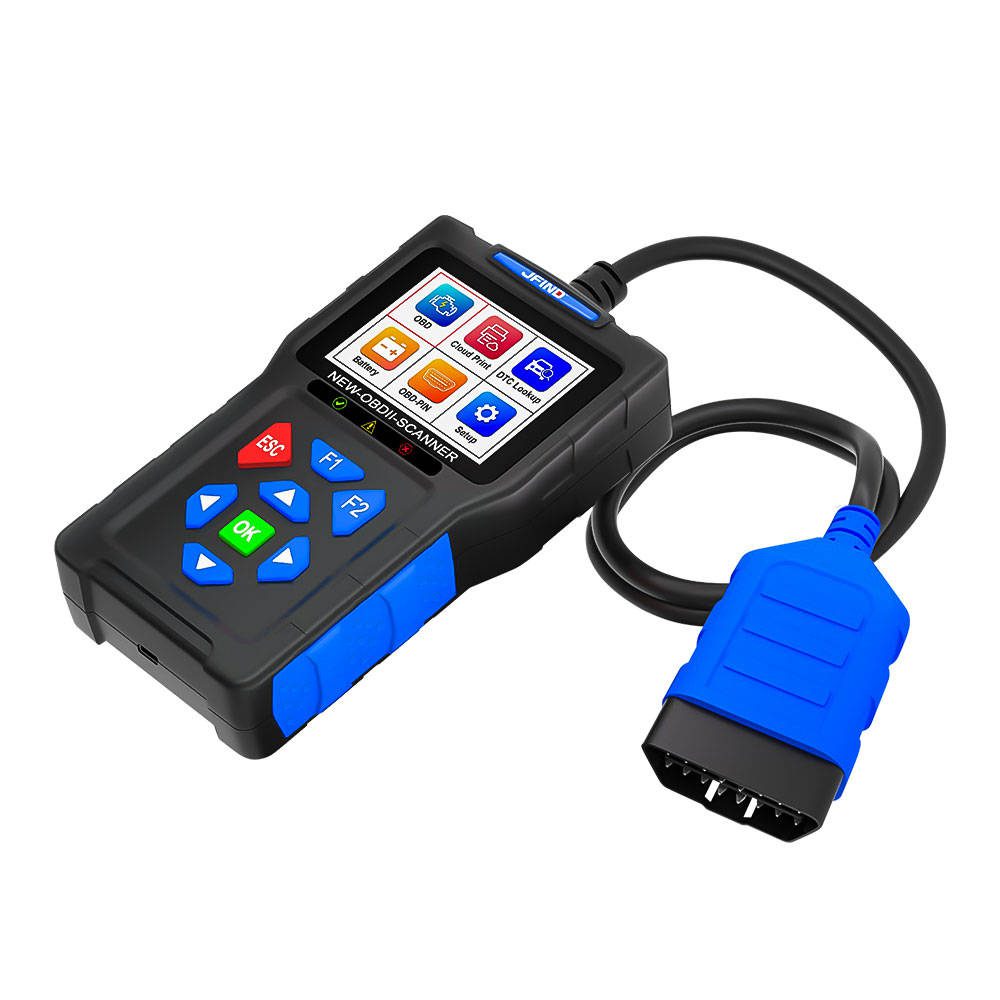

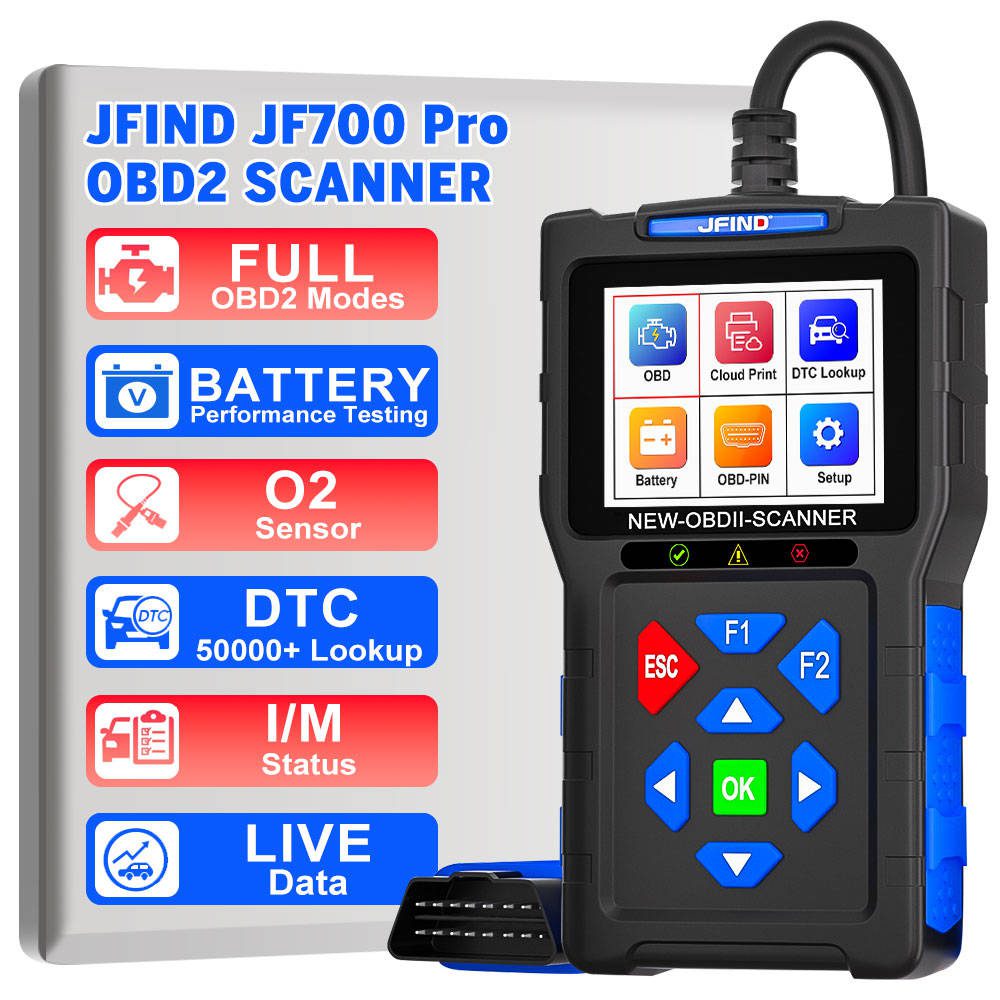

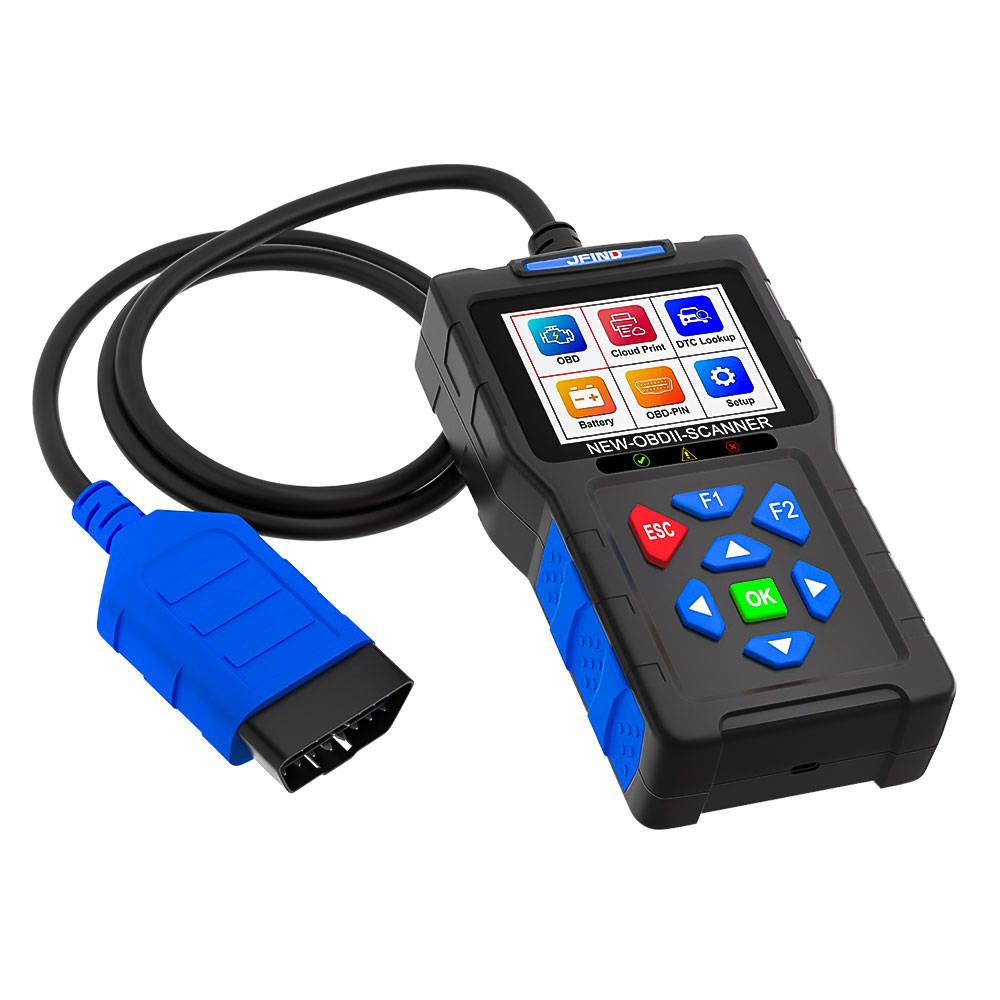

JFIND JF700 Pro Universal OBD2 Scanner Car Engine Fault Code Reader Battery Tester for All OBDII Vehicles Since 1996 & Newer

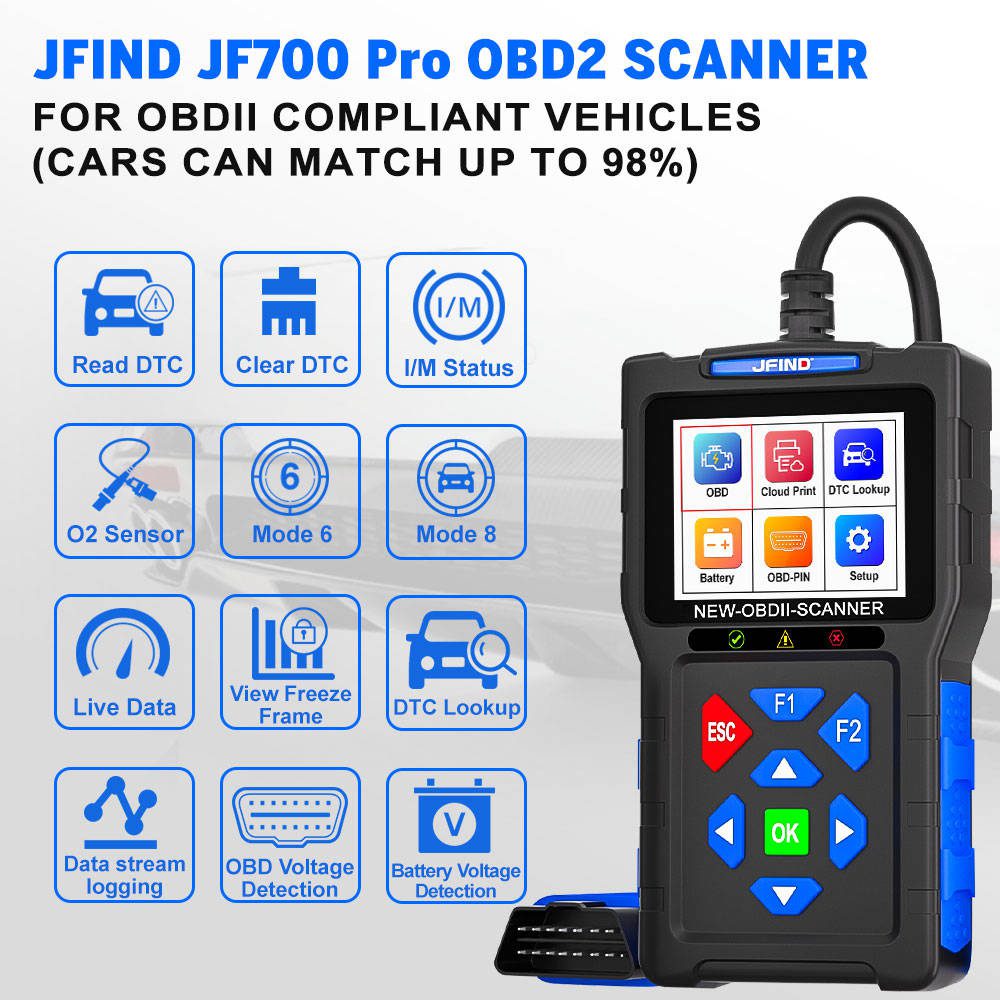

Top 6 Reasons To buy JFIND JF700 Pro Scanner:

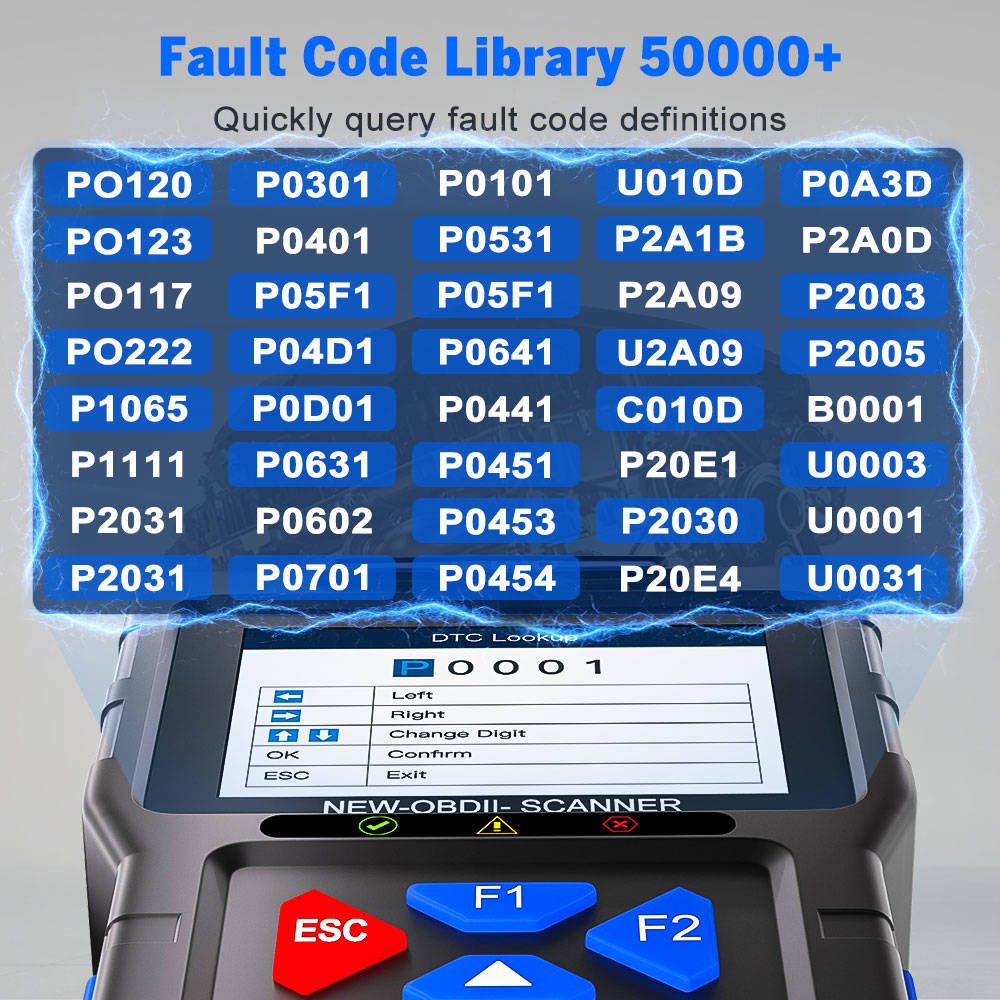

1. Read DTCs 50000+
2. OBD Voltage Detection
3. Battery Test
4. Mode 6 Test (Smog Test)
5. Mode 8 Test
6. Cloud Printing

Remark: It’s Cost Effective Product suit for big sale on A-M-A-Z-O-N( no competitor for now);

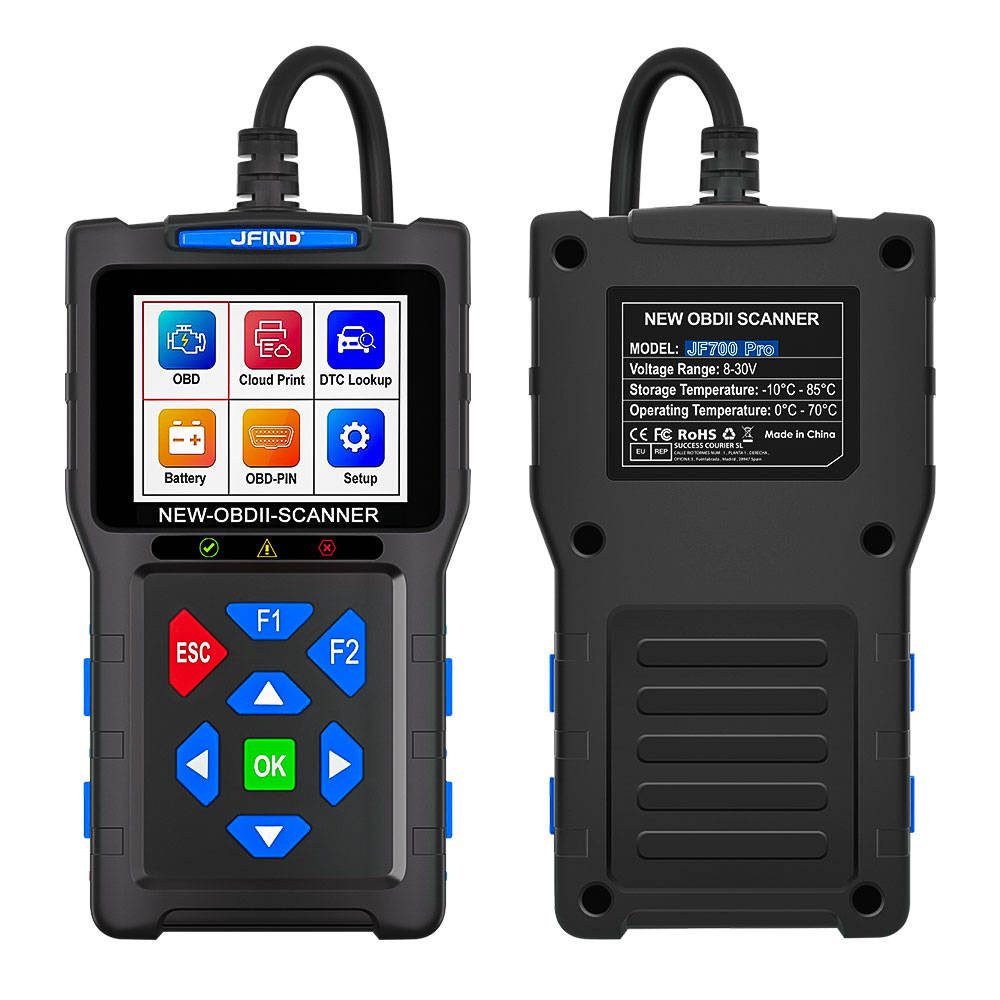

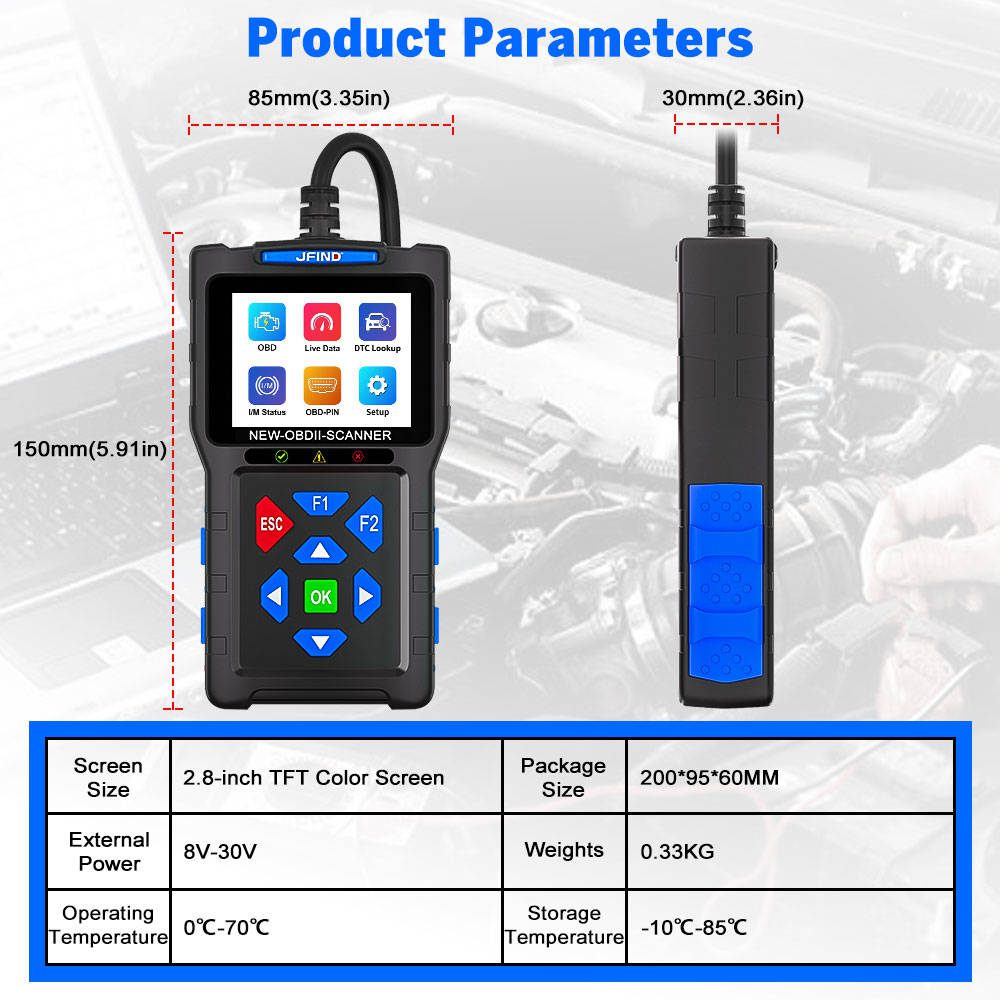

Specifications:

Screen Size: 2.8 inch TFT Screen

Operating Temperature: -20~60℃ （-4~140F)

Storage Temperature: -20~70℃ （-4~158F)

Working Voltage: 8v ~ 30V

Working Humidity: less than 60%

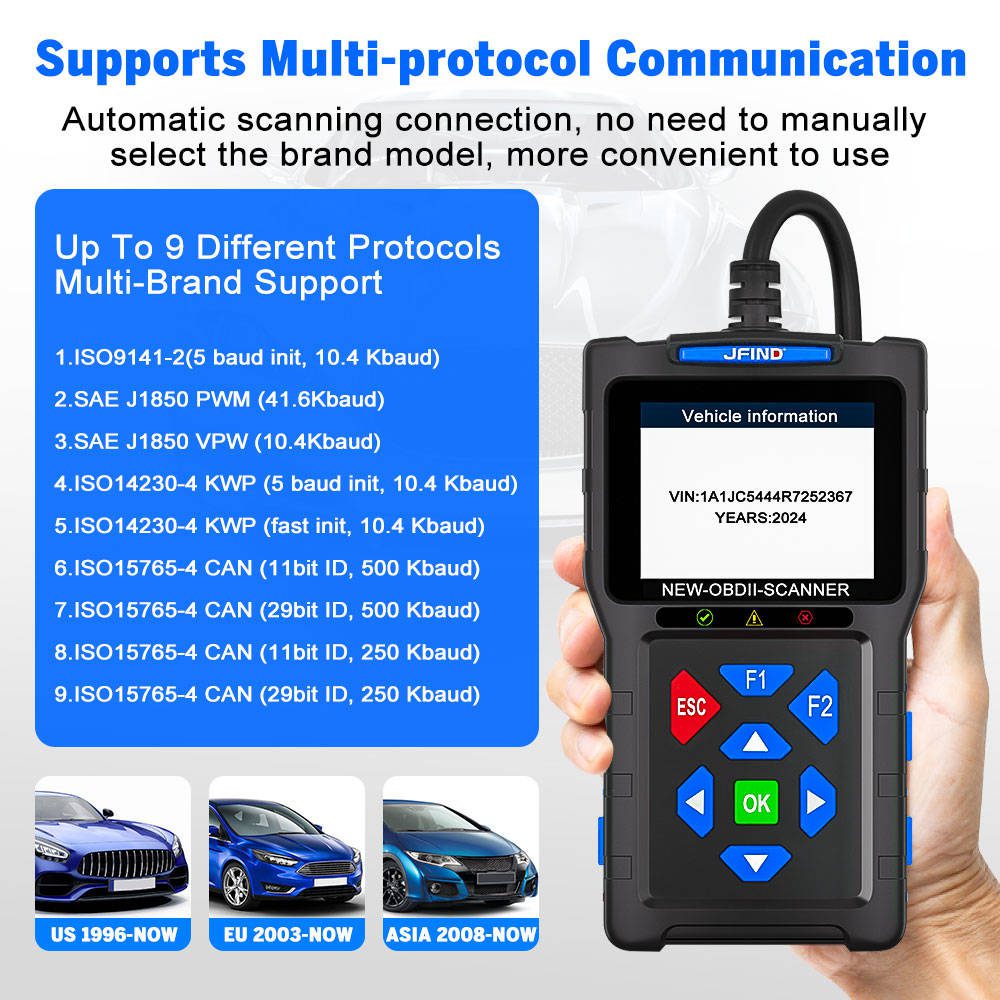

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4Kbaud)

4.ISO14230-4 KWP(5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



JFIND JF700 Pro Functions:



—OBDII Function

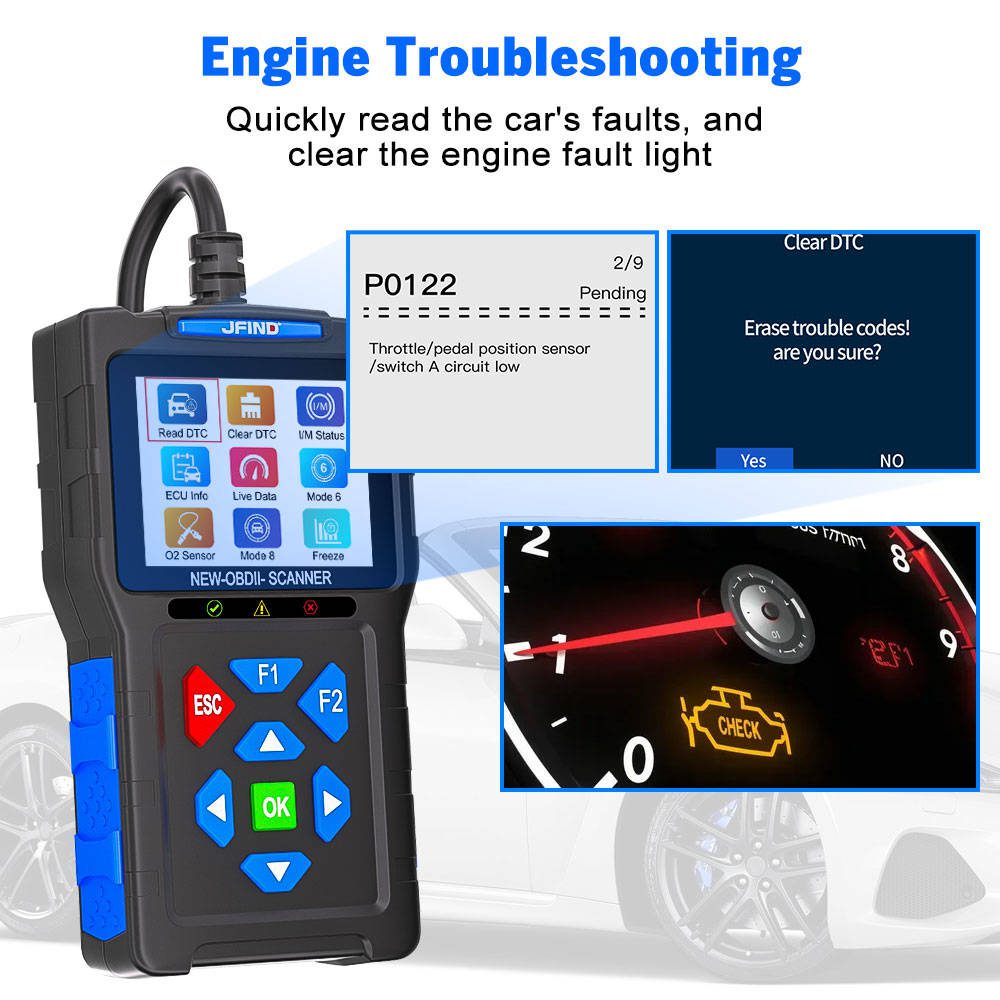

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic

code definitions in the database).

2: Clear trouble codes and turn off the MIL ( “Check Engine” light)

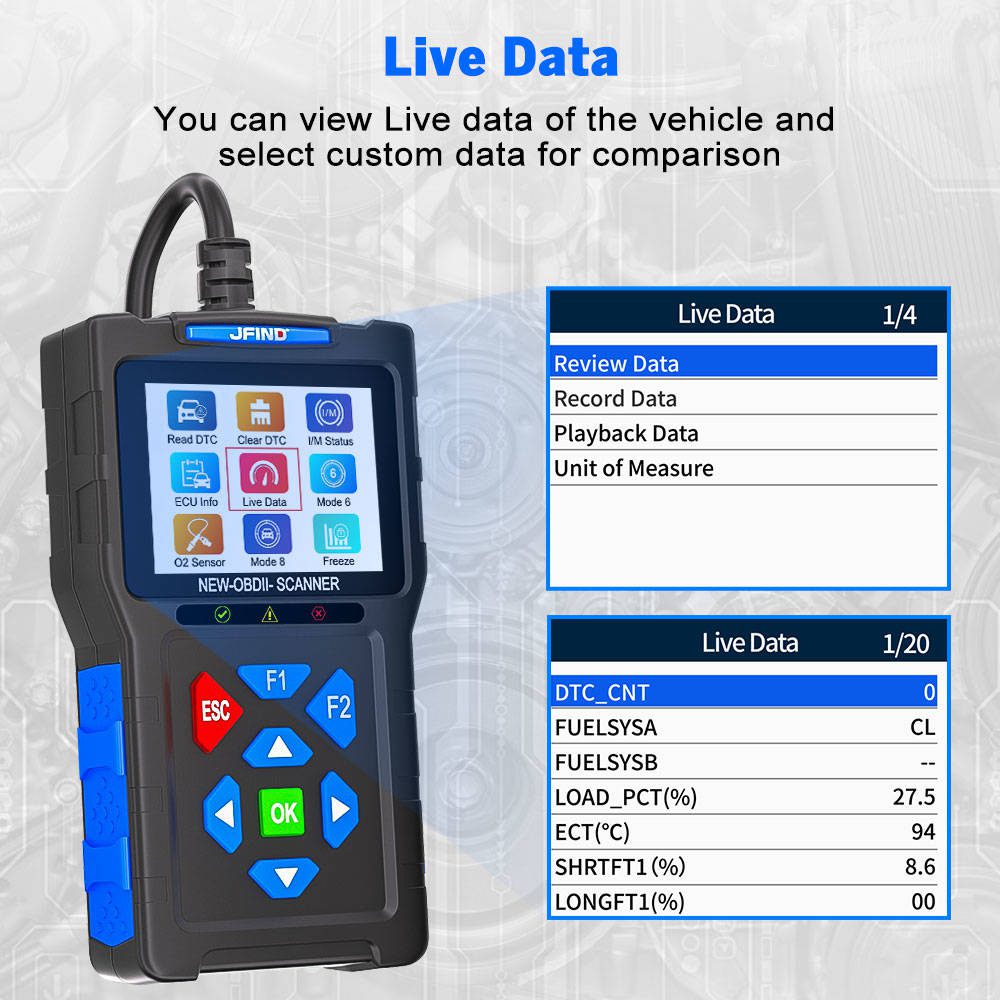

3: Display current sensordata, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

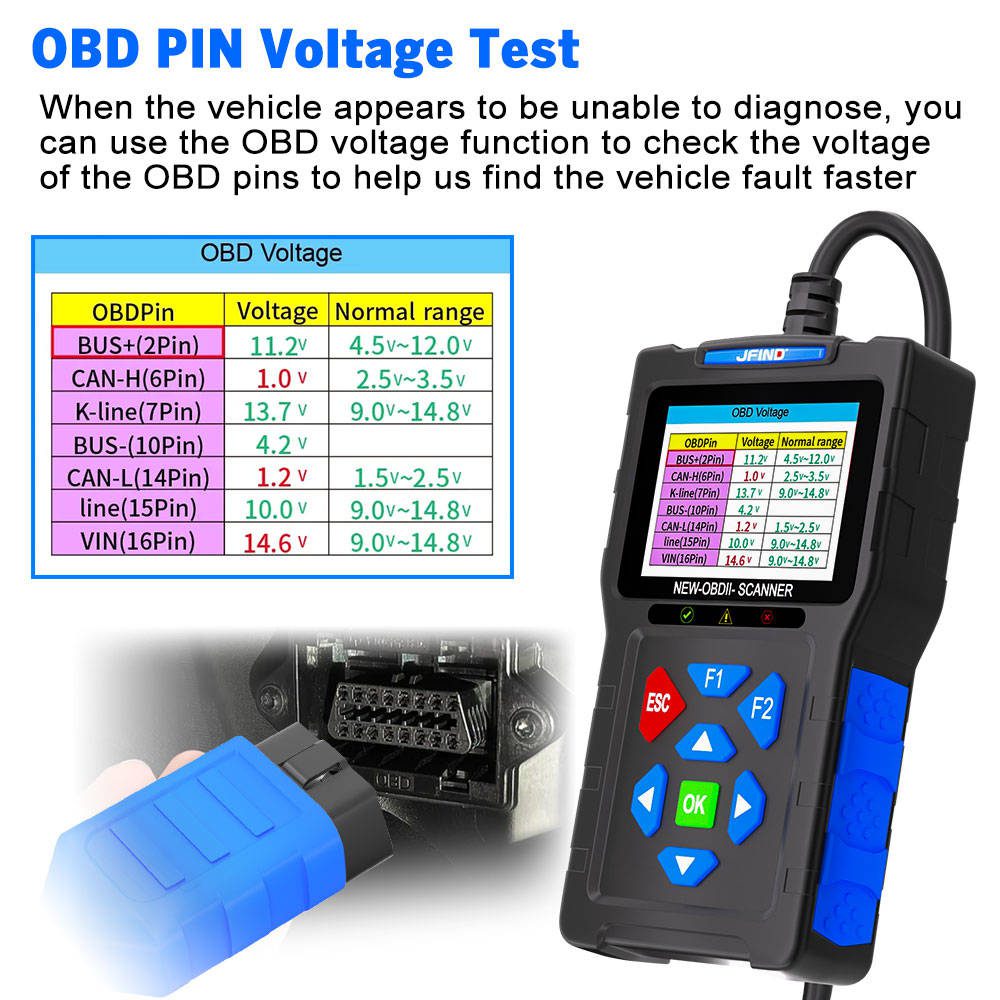

—OBDII  Pin Voltage Detection

By checking the voltage at specific pins, you can identify issues with power supply, communication, or the overall functionality of the OBD-II port. This is one of the big function advantage for this scanner compared with the other obd2 scanner.



—Mode 6 Test(Smog Test)

Mode 6 retrieves test results for emission-related powertrain components and systems that are not continuously monitored. This mode does not command the vehicle’s computer to perform the tests. It simply retrieves results from the most recently performed tests from the computer’s memory.

1: Oil Life

2: Oil Level

3: Battery Status

4: Transmission Fluid Temp

5: Tire Pressure

6:  Oxygen Sensors

7: Catalytic Converters

8: Exhaust Gas Recirculation System

9: Evaporative Emissions System

10: Purge Flow Monitor

11: Oxygen Sensor Heaters

12: Heated Catalytic Converters

13: Secondary Air System

14: Fuel System

15: Misfire Monitor



—Mode 8 Test

The purpose of the Mode 8 is to allow a scan tool to do bidirectional control of an onboard system or test. Typically, it is

currently limited to some evaporative emissions systems and allows the user to seal the system for leak testing.

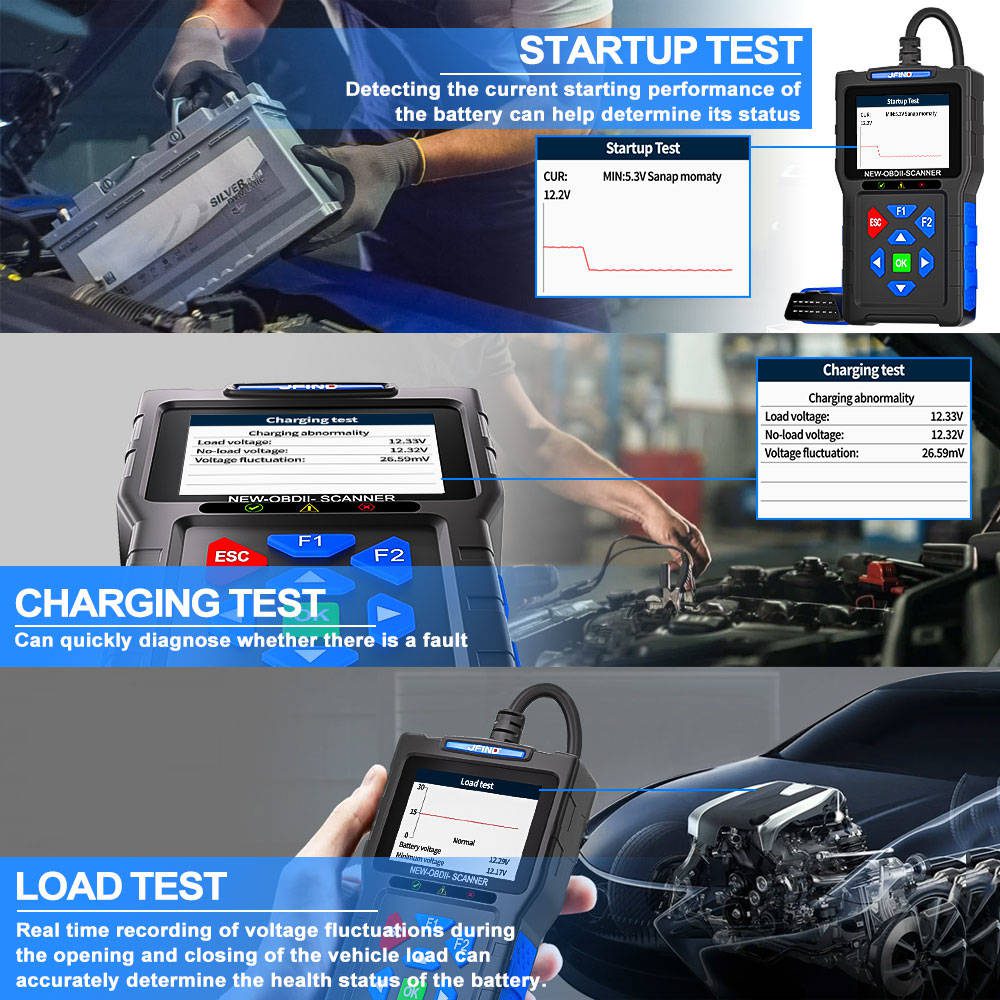

—Battery Test （very competitive function)

1. Battery Voltage Check
2. Startup Test
3. Charging Test
4.  Load Test
5.  Voltage Wave Form Display

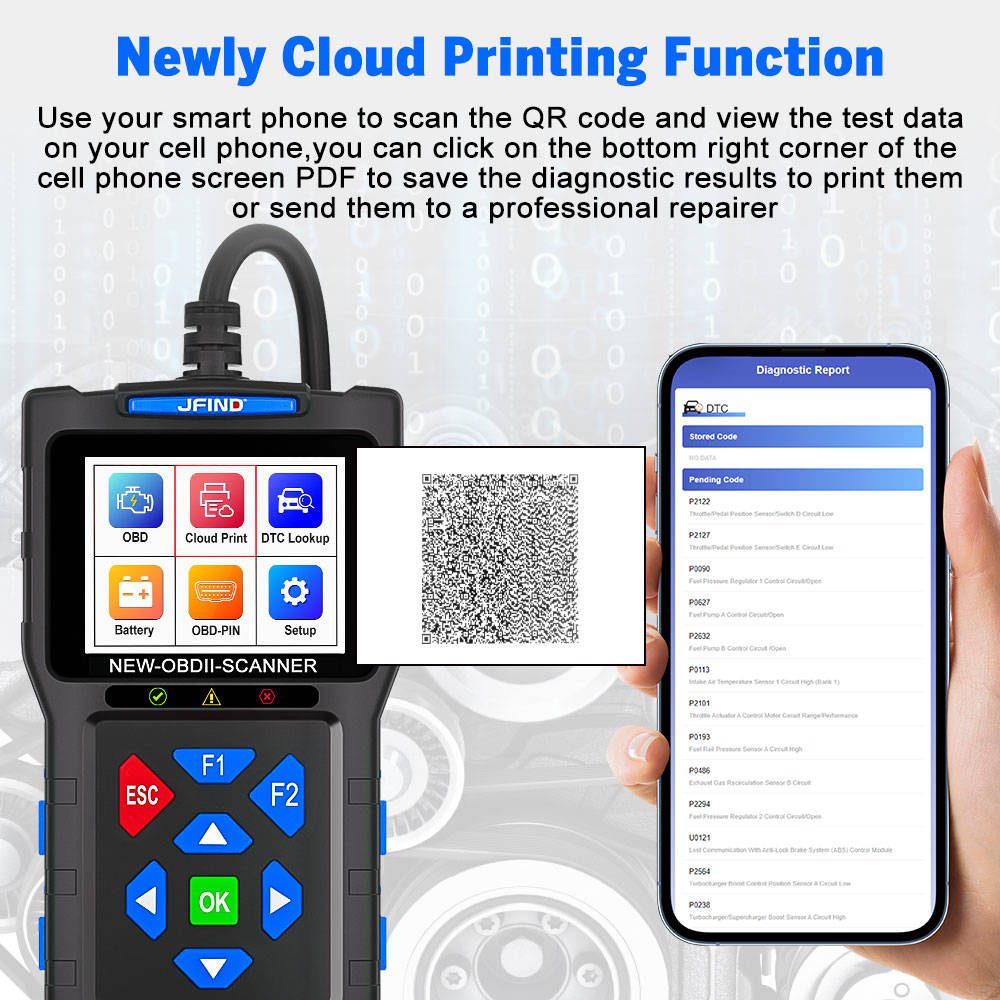

—Cloud Printing

Jfind JF700 Pro support cloud printing. It’s very convinient to send or share the test report online.

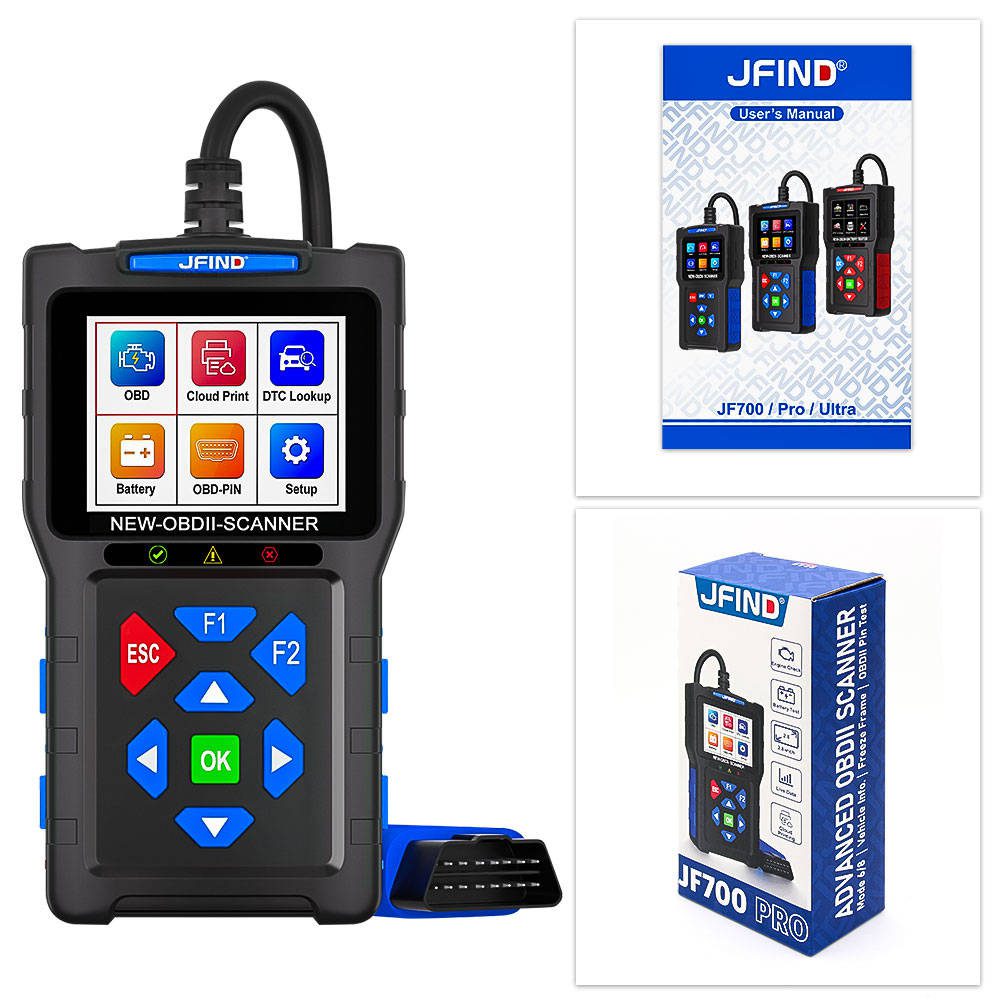

Package List:

1 x JFIND JF700 Pro OBD2 Scanner

1 x User Manual

1 x Box package
